Pullqit™ Anchor Test™
The Pullqit™ Anchor™ is designed for testing fixings, fasteners and anchors. It consists of a mechanical screw arrangement acting through a hydraulic load cell, which measures the load applied to the anchor directly. The resulting load value is then indicated on the dial type analog gauge. A maximum load indicator on the gauge provides reliable results whether the anchor is tested to failure or can be set for load verification purposes.
- Expansion, chemical, undercut, mechanical and wedge anchors.
- Frames, anchors and screw fixings.
- Structural anchors
- Safety anchors for ladder restraints.
- Two Gauges (25KN and 9KN) for maximum flexibility
- Built-in levels for both horizontal and vertical application
- Maximum load indicator for testing until failure
- Full line of adaptors for both ANSI UNC and Metric fittings
- Specialized adaptor for wedge style mechanical anchors
- Self-correcting ball load system reduces shear forces
- Full mechanical load eliminates hydraulic compression errors

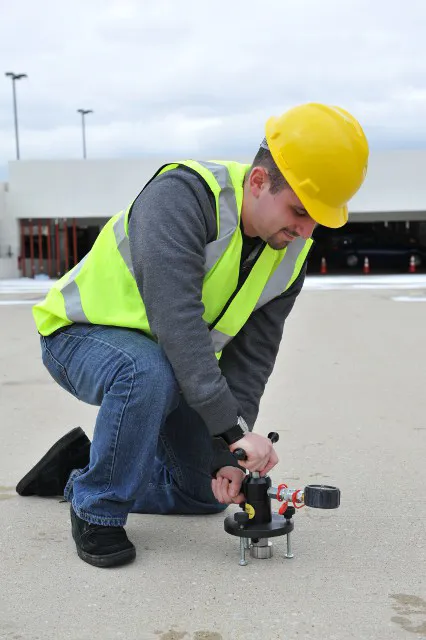

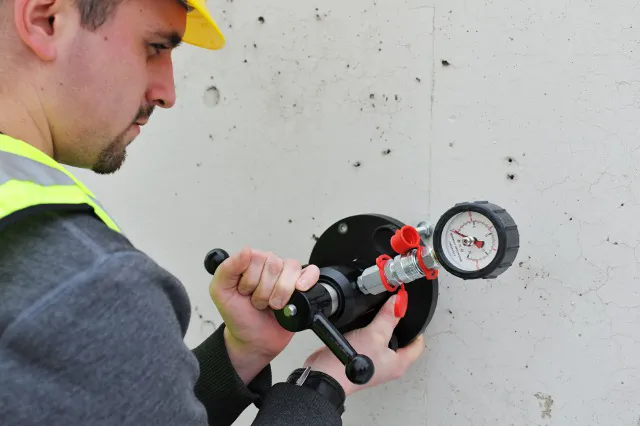

Pullqit™ Anchor Test System on Vertical Concrete Repair
Pullqit™ Anchor Test System on Asphalt

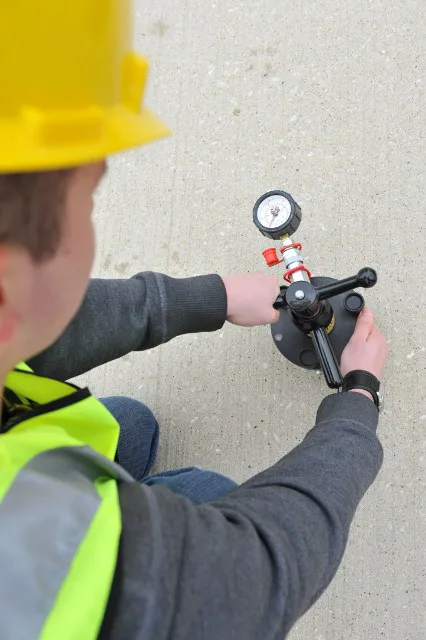

Pullqit™ Anchor Test System Showing Operator View while Testing

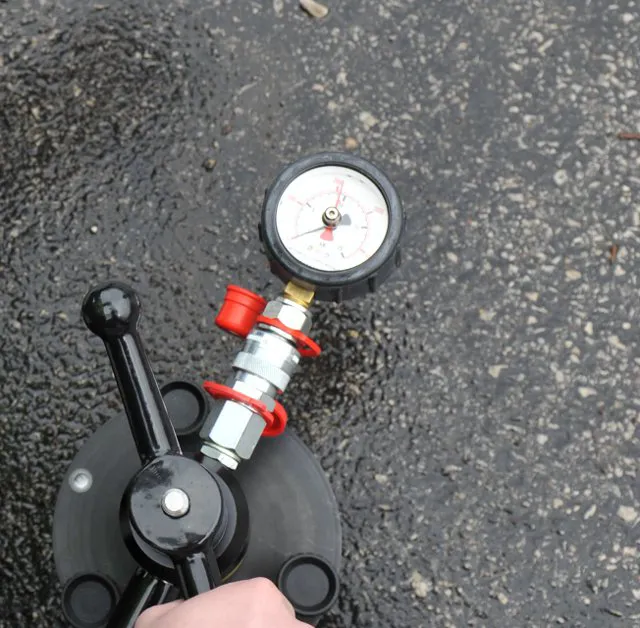

Pullqit™ Anchor Test System gauge showing maximum load indicator
The Pullqit™ Anchor Test System involves bonding a circular steel disk to the surface by means of an epoxy resin adhesive. A controlled tensile force is then applied to the disk and failure will occur at the weakest point: either in the host material, or in the bond between overlay and host material.

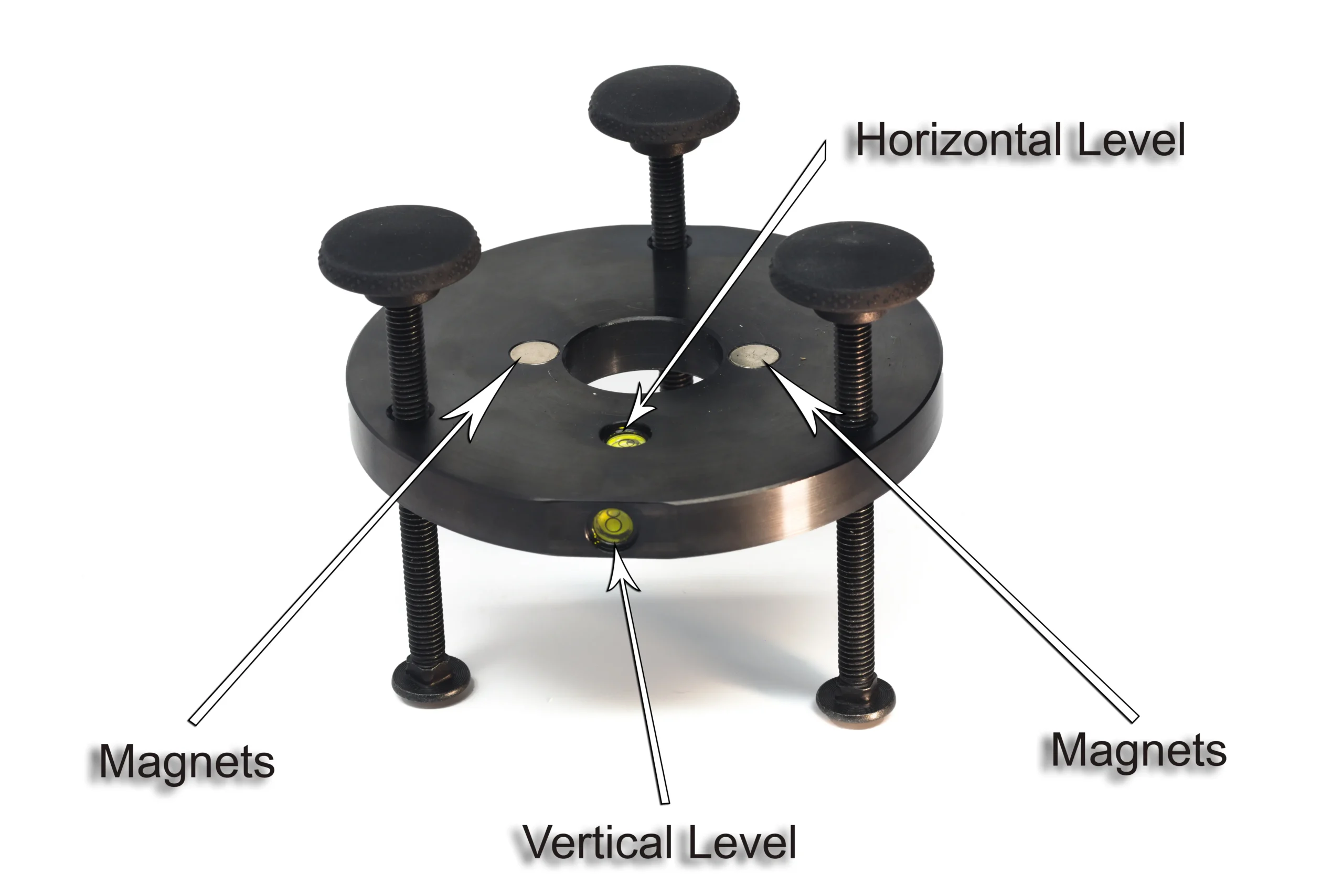

Alignment Plate showing both horizontal and vertical levels
Alignment plate showing vertical level detail
The alignment plate has two 360 degree bubble levels built in to facilitate set up, allowing a direct tensile pull from the surface of the material under test. The level can be easily adjusted by utilizing the thumb screws attached to the adjustment legs.
There are also two magnets that hold the pull assembly to the plate. This eliminates the tedious need for screws to keep the two assemblies together when transporting the system from one test to another. Yet it still keeps the system compact for storage and transportation.
Tests can also be performed for verification purposes and not to failure. This will assure the engineer that both the overlay and substrate have 'bonded' and further work or use can proceed.

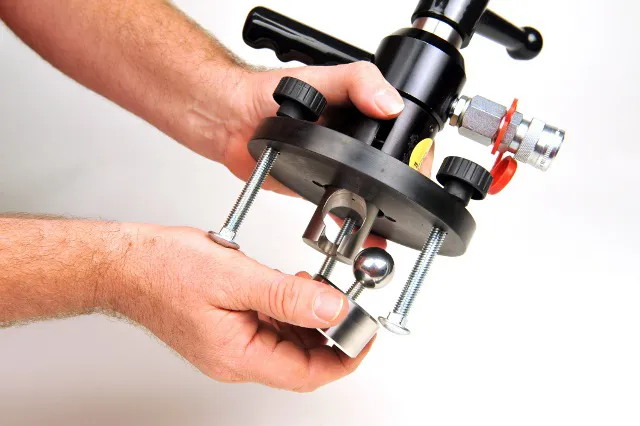

Pullqit™ Anchor Test System Pull Disk Being Mounted in Puller Assembly
Pull Disk Mounted in Bond Puller Assembly

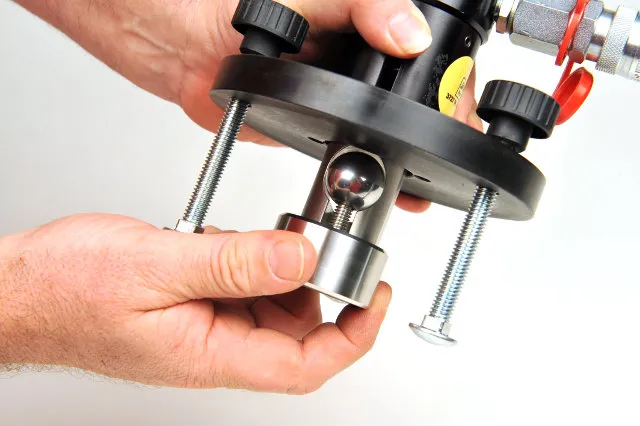

Pullqit™ Anchor Test System features a ball joint pull disk design. This assures that the pulling force is always in tension even if the pull disk is uneven due to irregularities with the anchor. This also creates a rapid test setup as the ball end of the disk simply slide into the Pulqit Puller.
| Pullqit™ Anchor Test System | |
| ANSI UNC Adapter Sizes | ¼ in., 5/16 in., ⅜ in., 7/16 in., ½ in. |
| Metric Adapter Sizes | M4, M5, M6, M8, M10, M12 |
| Wedge Adapter Size | Up to ½ in. |
| Operating Temperature | 0° to 50° C / 32° to 122° F |
| Pullqit™ Anchor Test System in Case | |
| System Case Size | 510 mm x 410 mm x 360 mm / 20 in. x 16 in. x 14 in. |
| System Case Weight | 12 kg / 28 lbs |
| Low Gauge Specifications | |
| Max Load | 9 kN / 2000 lbf |
| Major Load Indicators | 1 kN / 500 lbf |
| Minor Load Indicators | 0.2 kN |
| Diameter | 64 mm / 2.5 in. |
| High Gauge Specifications | |
| Max Load | 25 kN / 6000 lbf |
| Major Load Indicators | 5 kN / 1000 lbf |
| Minor Load Indicators | 0.5 kN / 200 lbf |
| Diameter | 64 mm / 2.5 in. |
| Alignment Plate | ||
| Diameter | Horizontal and Vertical Level | Easy Thumb Screw Adjustment Knobs |
| 150 mm / 6 in. | Yes | Yes |
