500 Khz Ultrasonic Transducer
Ultrasonic transducer is designed for rugged use on construction sites and similar outdoor environments. This transducer is built to both send and receive ultrasonic waves and convert them to a voltage output.
Ultrasonic transducer is designed for rugged use on construction sites and similar outdoor environments.This transducer is built to both send and receive ultrasonic waves and convert them to a voltage output. Typically used for ceramics. Also for use with carbon graphite specimens as well as Refractory Brick & similar materials.
ASTMC769 Standard Test Method for Sonic Velocity in Manufactured Carbon and Graphite Materials for use in Obtaining an Approximate Value at Young's Modulus ASTMC1419 Sonic Velocity in Refractory Materials at Room Temperature and Its use in obtaining an Approximate Young's Modulus
| Uses | For fine-grain materials (ceramic, glass) For small samples For refractory bricks For carbon and graphite materials |
| Weight | 23 g / 0.05 lbs. |

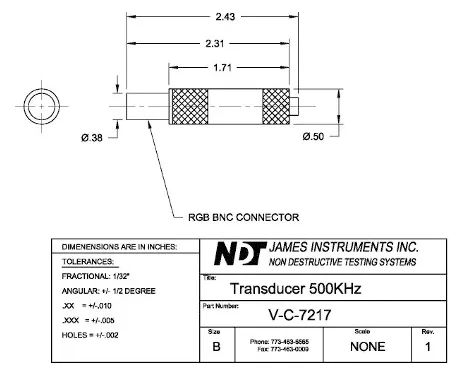

| Case Dimensions | Diameter 6 mm x Length 61 mm (0.38 in. x 2.4 in.) |
| Housing | Stainless steel and brass, ruggedised |
| Element | Piezoelectric ceramic |
| Frequency | 500 kHz centre |
| Operating Temperature | -10 to 40°C |
| Excitation | Typically HV 1000 V @ 5 µs; LV 600 V @ 5 µs |
